ABB Miniature Circuit Breaker SB202M-C25
Built for Reliable Circuit Protection!
Product: ABB SB202M-C25
Catalog Description: Miniature Circuit Breaker – SB200M – 2 Pole – 25 Amp – Curve C.

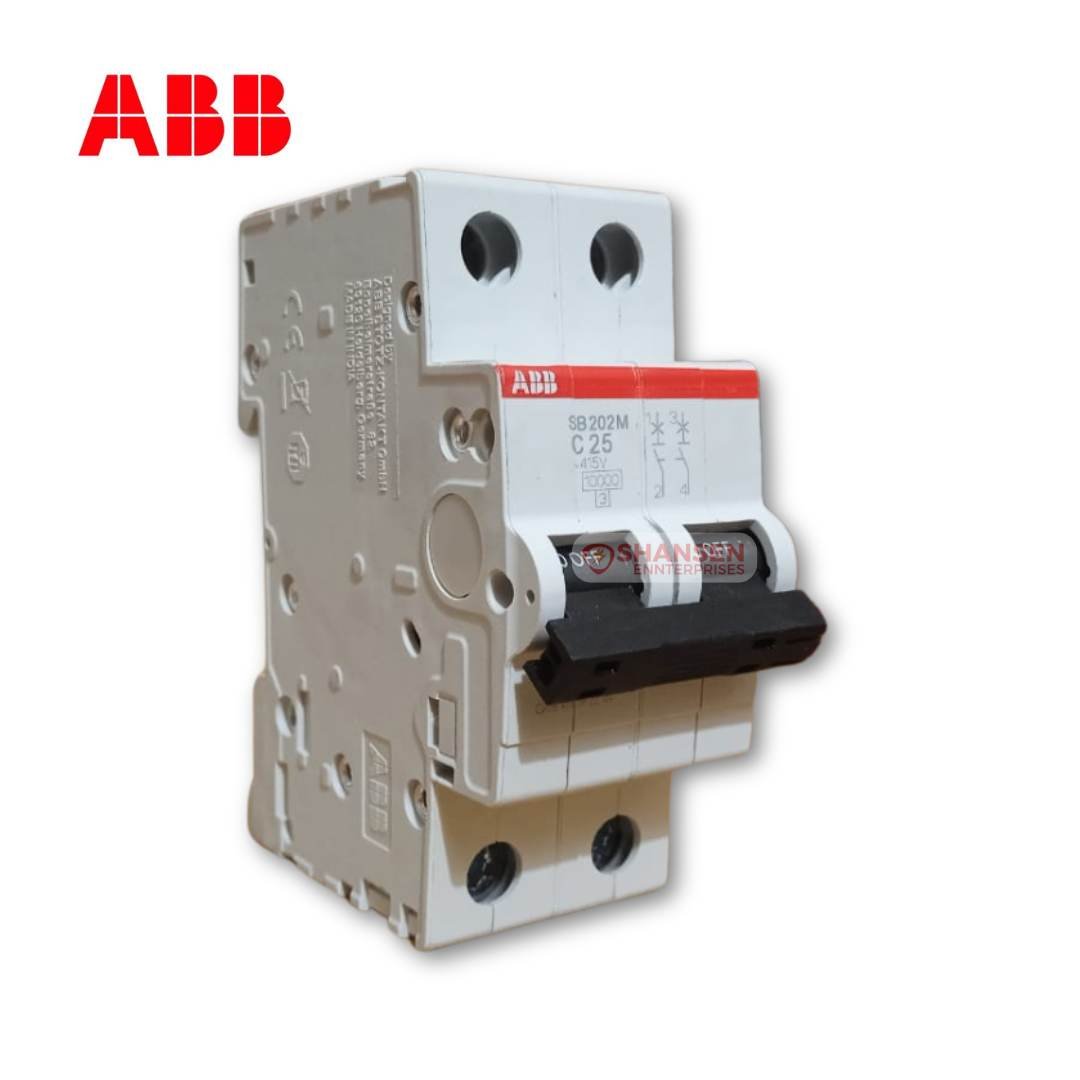

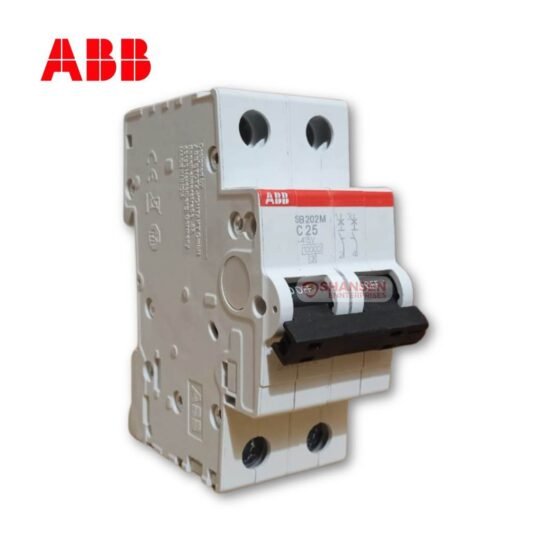

The ABB SB202M-C25 is a 2-pole, 25A, C-curve Miniature Circuit Breaker (MCB) designed for reliable protection against overloads and short circuits. It’s ideal for residential, commercial, and light industrial use, complying with IS/IEC 60898-1 standards.
⚙️ Key Features & Benefits:
🔸 Dual Tripping Mechanisms for Enhanced Protection
This MCB includes both a delayed thermal tripping mechanism to handle overloads and an electromechanical tripping mechanism to instantly react to short circuits. You’re covered from all angles!
🔸 25A Rated Current with C-Curve
Perfect for moderately inductive loads like lighting circuits, air conditioners, or small motor loads that need a bit more tolerance before tripping.
🔸 2-Pole Configuration
This SB202M-C25 version offers a double-pole design, cutting both live and neutral lines simultaneously for safer disconnections.
🔸 High Breaking Capacity
Handles fault conditions with a breaking capacity of up to 10 kA at 240/415V AC.
🔸 IS/IEC 60898-1 Compliant
Certified for safety and performance, giving you peace of mind whether you're wiring a house or outfitting a commercial setup.
🔸 Wide Application Use
Suitable for residential flats, commercial buildings, light industrial units, or anywhere consistent and safe power distribution is needed.
🛒 Where to Buy?
Available at:
👉 Shansen Enterprises, Coimbatore – Your trusted Authorized Channel Partner for ABB electrical products.
We serve customers across India with ready stock and prompt service.
📦 Fast Dispatch: Ships within 48 hours via courier or transport services—right to your doorstep.
📲 Quick Quote: Tap “Get Quote via WhatsApp” directly on this product page to receive a prompt response.
Get a Quote for This Product
Send us a message on WhatsApp or email to get pricing and availability. We respond within 30 minutes.
Product Description
| ABB EcoSolutions | Details |
|---|---|
| ABB EcoSolutions: | Yes |
| Recyclability Rate of the Product acc. to EN45555: | Design for Closing Resource Loops - Standard EN45555 - 91.69% |
| ABB Site Meeting Group Waste To Landfill Target: | No non-hazardous waste is sent to a landfill |
| Sustainable Material Content in Packaging (wt.%): | FSC 100% Paper - 43.11% FSC 100% Paper - 30.23% FSC Mix Paper - 23.68% 0% 0% |
| Extended Product Lifetime: | Product Durability |
| End Of Life Disassembling Instructions: | SB200M, SB200DC End of Life Instruction |
| Environmental Product Declaration - EPD: | EPD SB200M MCB 10kA |
| Technical | Details |
|---|---|
| Rated Operational Current (Ie): | 25 A |
| Rated Service Short-Circuit Breaking Capacity (Ics): | 7.5 kA |
| Energy Limiting Class: | 3 |
| Electrical Endurance: | 20000 AC cycles |
| Mechanical Endurance: | 20000 cycles |
| Number of Protected Poles: | 2 |
| Number of Poles: | 2P |
| Tightening Torque: | 2 N·m |
| Actuator Type: | Toggle |
| Screw Terminal Type: | Cage Terminal |
| Actuator Marking: | I / O |
| Actuator Material: | Insulation Group II, Black, Sealable |
| Recommended Screw Driver: | Pozidriv 2 |
| Accessories Available: | Yes |
| Remarks: | IP40 in enclosure with cover |
| Connecting Capacity: | Rigid: 25 mm² Flexible: 16 mm² |
| Electrical | Details |
|---|---|
| Tripping Characteristic: | C |
| Rated Voltage (Ur): | 415 V |
| Operational Voltage: | Maximum 264 V AC Maximum 60 V DC |
| Rated Impulse Withstand Voltage (Uimp): | 4 kV |
| Rated Current (In): | 25 A |
| Rated Short-Circuit Capacity: | 10 kA |
| Rated Frequency (f): | 50 Hz |
| Overvoltage Category: | III |
| Category | Details |
|---|---|
| Housing Material: | Insulation Group II, RAL 7035 |
| Material Compliance - RoHS Information: | 1SYM100001D1015 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| RoHS Date: | 43546 |
| Conflict Minerals Reporting Template (CMRT): | Conflict Minerals Reporting Template |
| WEEE Category: | Product Not in WEEE Scope |
| Ambient Air Temperature: | Operation -25 ... +55 °C |
| Reference Ambient Air Temperature: | 30 °C |
| Degree of Protection: | IP20 |
| Pollution Degree: | 2 |
| Environmental Conditions: | 28 cycle 55°C @ 90-96% 25°C @ 95-100% |
| Resistance to Vibrations: | 20 Cycles with Load 0.8 In: 5g (5–150 Hz) 20 Cycles with Load 0.8 In: 6g (35 Hz) |
| Resistance to Shock acc. to IEC 60068-2-27: | 25g / 2 shock / 13 ms |
