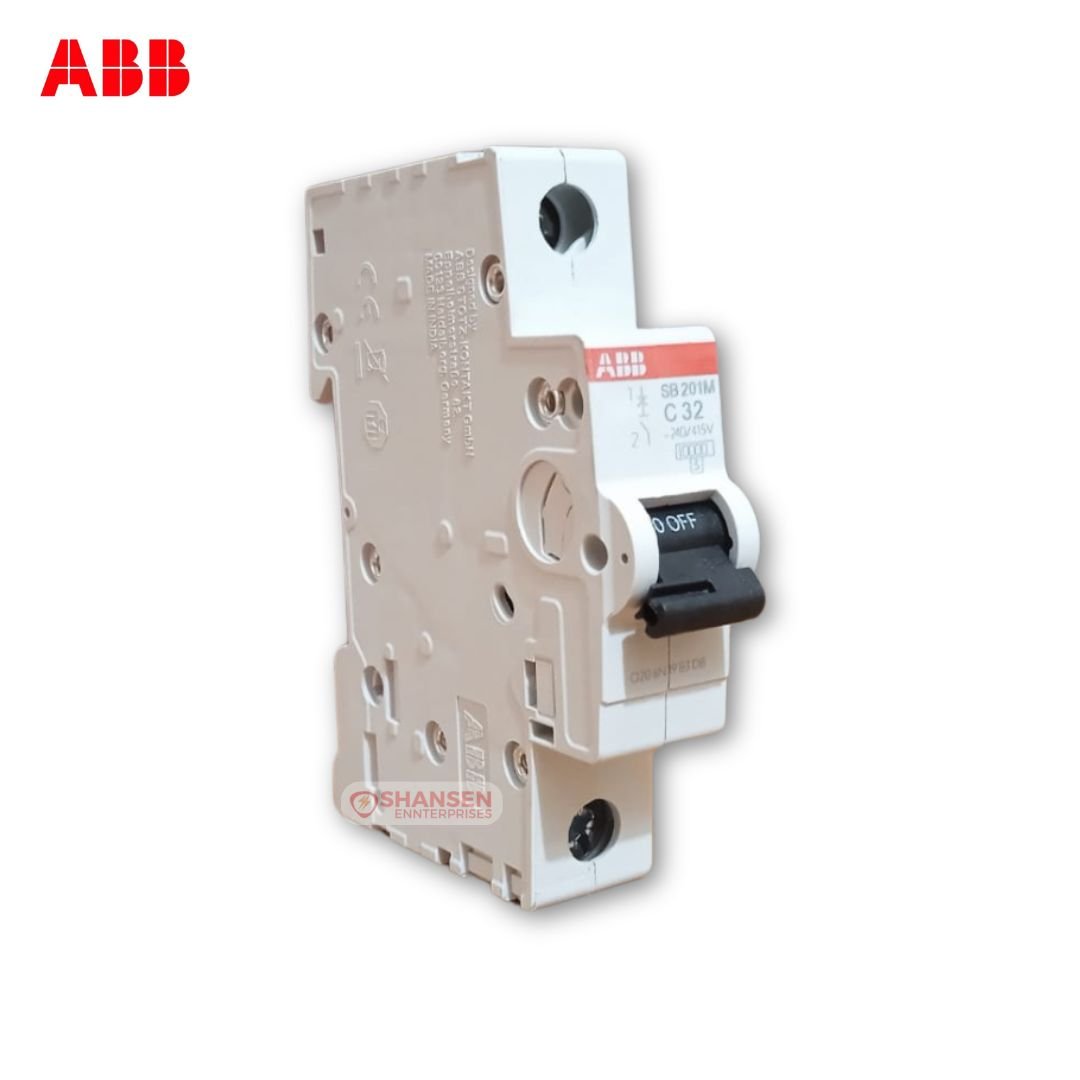

ABB SB201M-C32 Miniature Circuit Breaker
Key Features at a Glance
-
Rated Current: 32 A
-
Voltage Rating: 240 / 415 V AC, Max 264 V AC
-
DC Compatibility: Up to 60 V DC
-
Short-Circuit Capacity: 10 kA
-
Tripping Mechanism: Thermal (overload) and Electromechanic (short-circuit)
-
Breaking Characteristics: Type C
-
Standards: IS/IEC 60898-1 Compliance
-
Impulse Withstand Voltage: 4 kV
-
Compact Size: Width 17.5 mm, Height 85 mm, Depth 69 mm
-
Weight: 0.12 kg
-
Overvoltage Category: III
-
Easy installation with a built-in depth of 69 mm
Why Choose This Product
The ABB SB201M-C32 Miniature Circuit Breaker is not just another circuit breaker—it's a compact powerhouse. Designed with both delayed thermal and electromechanic tripping systems, it gives you double-layer protection against overloads and sudden short circuits. Its high breaking capacity of 10 kA ensures your wiring and devices stay safe even under extreme fault conditions. Plus, ABB's commitment to quality means you're investing in a product that's trusted by professionals around the globe.
Ideal For
-
Residential Electrical Installations
-
Commercial Complexes
-
Industrial Plants
-
Panel Builders
-
Electrical Contractors
-
System Integrators
Get a Quote for This Product
Send us a message on WhatsApp or email to get pricing and availability. We respond within 30 minutes.
Product Description
| Technical | Details |
|---|---|
| Rated Operational Current (Ie) | 32 A |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 7.5 kA |
| Energy Limiting Class | 3 |
| Electrical Endurance | 10000 AC cycles |
| Mechanical Endurance | 20000 cycles |
| Number of Protected Poles | 1 |
| Number of Poles | 1P |
| Tightening Torque | 2 N·m |
| Actuator Type | Toggle |
| Screw Terminal Type | Cage Terminal |
| Actuator Marking | I / O |
| Actuator Material | Insulation Group II, Black, Sealable |
| Recommended Screw Driver | Pozidriv 2 |
| Accessories Available | Yes |
| Remarks | IP40 in enclosure with cover |
| Connecting Capacity | Rigid: 25 mm²; Flexible: 16 mm² |
